Stock # 707

Teagle Tomahawk 8150

Call for Price

Tomahawk 8150 Dual Chop
Chop short, spread long all at the touch of a button

Outstanding flexibility with 3 jobs from 1 machine. Bed loose housing and cubicles, as well as processing short straw for feed.

  • 64,500 chops/minute for a fine and consistent output.

  • Process up to 6 tonnes/hour at a chop length of 5cm.
  • Outstanding 'Flow Plus' Performance to save you money

Faster, stronger, and now incorporating FlowPlus:

  • Greater output
  • More consistent feed rate
  • Controlled delivery at low fan speeds


Tomahawk 8150
Sale Type
benefits and features

Teagle Tomahawk 8150 Heavy Duty Bed Chain
12mm heavy duty bed chain, resulting in less tensioning adjustments. The chain does not have anything welded to it, which would lower its strength.

Teagle Tomahawk 8150Visual Feedback
An indicator confirms the movement of the bed chain. The hydraulic motor driving the bed chain is not vulnerable to damage.

Teagle Tomahawk 8150Swivel Chute
For flexibility of delivery, the chute rotates 280? allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

8 Paddle FanTeagle Tomahawk 8150

The fan has 8 paddles, 230mm width from 6mm steel. Rotor diameter 1.5m. The paddles can be individually replaced if damaged. The wide paddles blow more air, and so blow straw further.

High Performance ValveTeagle Tomahawk 8150

Hydraulic valve can take up to 60 litres/minute, resulting in less heating of the oil, faster response to the controls and more power being delivered to the Tomahawk.

Robust Tailgate and Straightforward Maintenance Access

The Tailgate is raised by two hydraulic cylinders to ensure reliable operation. A removable underfloor panel is fitted to provide straightforward maintenance access underneath the machine.

Slip and overrun on PTOTeagle Tomahawk 8150

For driveline protection a slip clutch is fitted as standard on the PTO shaft.

Remote control tailgate & bedchain switch

Load bales without having to return to the tractor cab, ideal when removing netting or wrap.

Robust Transmission

Chain drive to crossbeater ensures reliable transmission of maximum power.

Tailgate Mechanism and Under Floor Panel

The rear door has two hydraulic cylinders to reduce stress on the chassis. The Tomahawk has an underfloor panel fitted; useful for maintenance.


product specifications
Chute Swivel
Straw Spread and Chop Short
No. of crossbeaters 1
Capacity (Cubic feet) 120
Capacity (bushels) 96
No. of 5' round bales 2
No. of 8' rectangular bales (4'x3' / 4'x4') 1/1
Bale chamber (tailgate down) W x H x D 5'1" x 4'1" x 9'9"
Blow distance (max.) 65'
Min. tractor PTO 60HP
Overall width (chute closed) 6'11"
Overall length (tailgate up) 13'7"
Overall length (tailgate down) 17'8"
Overall height (chute closed) 8'6"
Unladen weight 4,780 lb
Tyre size 10.11/75-15.3 (options available)
Feed Baled Silage No
Feed Clamp Silage No
Bed Cubicles / Straw Processing Yes
Bed Loose Housing Yes



additional options

Hydraulic Filter Teagle Tomahawk 8150
In-line high pressure filter stops contamination from damaging the valve equipment.

Teagle Tomahawk 8150 Tailgate Extension
Increase capacity and ease of loading, attaches easily to a standard tailgate.

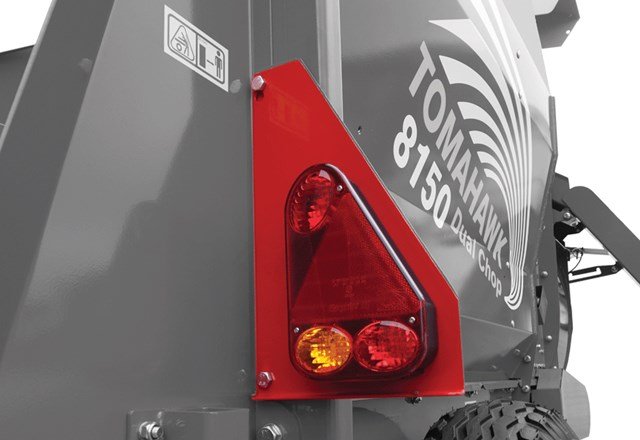

Teagle Tomahawk 8150 Road Lighting Kit
Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.

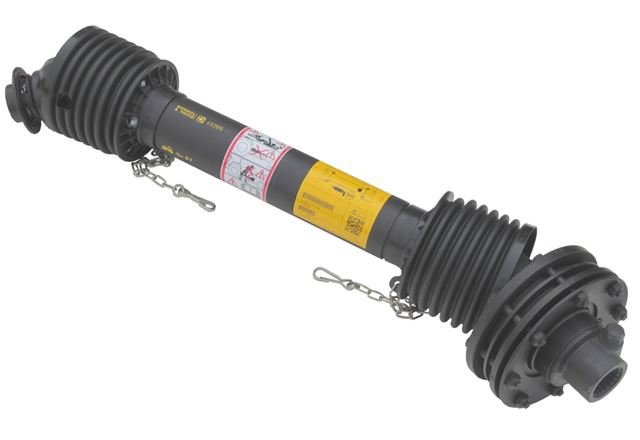

Teagle Tomahawk 8150 Wide Angle PTO
For continuous operation when turning corners a Wide Angle Walterscheid PTO shaft is also available.

Teagle Tomahawk 8150 Clevis Drawbar and Jack
Where no pick up hitch is available a clevis drawbar and jack is available for straight forward hitching and unhitching.

Teagle Tomahawk 8150 Greedy Boards
Increase capacity for loose materials. Available only for 8150/8550 models.
