Stock # 709

Teagle Tomahawk 8555

Call for Price

Tomahawk 8555 Dual Chop

The most versatile model in the Tomahawk range, now with removable screen and an automatic chain lubrication system.

Now you can also process clamp and baled silage with the Tomahawk 8555. The screen which is usually fitted to ensure a consistently short chop length, is now removable through the side of the machine and an optional bypass frame is fitted.

3 Operating Modes

  1. Short Chop - knives and screen
  2. Shred - knives and bypass frame
  3. Distribute - no knives and bypass frame

Save time and fuel

Time and fuel can be saved by processing straw prior to it being added to the ration in a diet feeder, 66,000 chops per minute offers fast and consistent performance.

No over processing

Pre-process straw so that the diet feeder does not need to mix for as long, thereby reducing the problem of over processing the silage in the ration.

Short chop length

Chopping down to an average of 50mm, with clean cut ends, means you can achieve the ideal material for feeding to create effective rumen stimulation and increased milk yields


Tomahawk 8555
Sale Type
benefits and features

Teagle Tomahawk 8555 Durability
Wear resistant steel is found throughout the fan housing and discharge chute components.

Teagle Tomahawk 8555 Slip and overrun on PTO
For driveline protection a slip clutch is fitted as standard on the Walterscheid PTO shaft.

Teagle Tomahawk 8555 Heavy Duty Bed Chain
12mm heavy duty bed chain, resulting in less tensioning adjustments. The chain does not have anything welded to it, which would lower its strength.

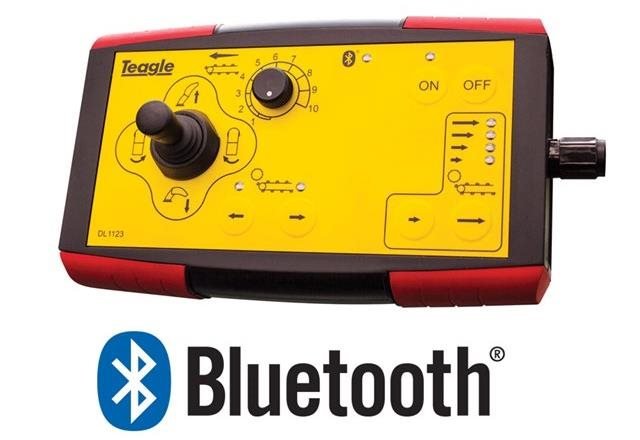

Teagle Tomahawk 8555 Wireless Control
Slimline control panel uses Bluetooth® wireless technology for straight-forward communication between the operator and the Telehawk.

Teagle Tomahawk 8555 Road Lighting Kit
Recommended for highway use.

Teagle Tomahawk 8555Pre-selector gearbox
All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.

Teagle Tomahawk 8555Visual Feedback
An indicator confirms the movement of the bed chain. The hydraulic motor driving the bed chain is not vulnerable to damage.

Wide body

All models in the 8500 range feature a wide bale chamber, wide crossbeater and large diameter fan. This makes loading easier and increases both processing speed and spreading distance.

Automatic chain lubrication system

The new 8555 incorporates an electronically controlled, automatic lubrication system for the crossbeater drive chain.


Bed chain, crossbeater, fan and chute components are tried and tested in all models in the Tomahawk range.


product specifications
No. of crossbeaters 1
Capacity (Cubic feet)
Capacity (bushels) 124
No. of 5' round bales 2
No. of 8' rectangular bales (4'x3' / 4'x4') 1/1
Bale chamber (tailgate down) W x H x D 5'7" x 4'1" x 9'9"
Blow distance (max.) 72'
Min. tractor PTO 80HP
Overall width (chute closed) 7'2"
Overall length (tailgate up) 13'7"
Overall height (chute closed) 9'2"
Overall length (tailgate down) 17'8"
Unladen weight 5,401 lb
Tyre size 12.5/80 - 15.3
Oil flow rate (min-max) US gallons/min 9.3 - 15.9


additional options

Hydraulic Filter Teagle Tomahawk 8555
In-line high pressure filter stops contamination from damaging the valve equipment.

Teagle Tomahawk 8555 Tailgate Extension
Increase capacity and ease of loading, attaches easily to a standard tailgate.

Teagle Tomahawk 8555

Blanking Frame for wet materials
Now you can also feed clamp and baled silage by removing the standard screen and fitting the blanking frame.

Teagle Tomahawk 8555 Wide Angle PTO
For continuous operation when turning corners a Wide Angle Walterscheid PTO shaft is also available.

Teagle Tomahawk 8555 Screen Storage Rack
Under chassis storage for the screen when blanking frame is in use.


Name Link
Tomahawk Bale Processor Brochure Download
Product Guide Download
