Stock # 7099

Teagle Tomahawk 9500

Call for Price

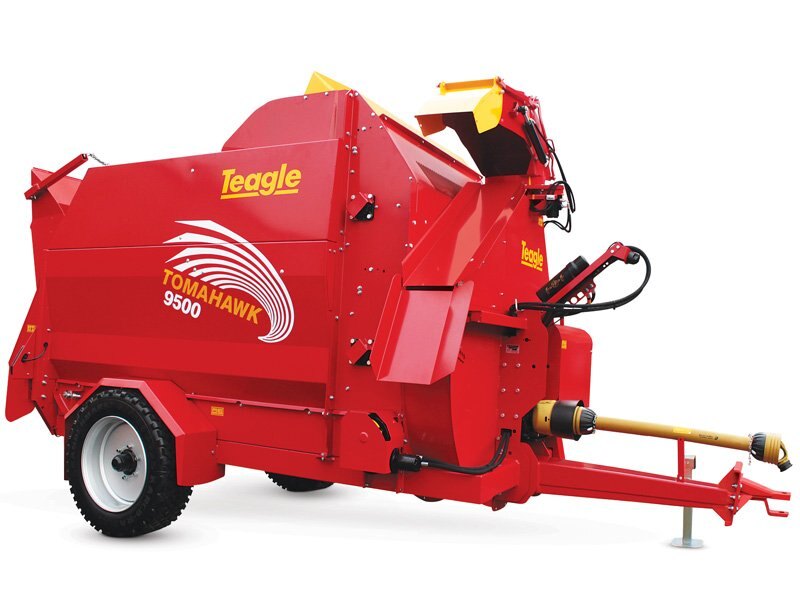

Tomahawk 9500

The New benchmark in high performance bale processing. Ideally suited to farmers who require a combination of manoeuvrability and high capacity.

A complete package: Bluetooth controls, twin crossbeaters, large capacity, compact design

9500 Summary
  • Wide body / twin crossbeater configuration ensures easy loading and offers large 8m³ capacity.
  • Large diameter fan spreads straw up to 22m and feeds clamp or chopped bale silage.
  • Bluetooth® wireless technology for straightforward communication between the operator and the Tomahawk 9500.
  • Weigh cells and braked axle options available.

Incorporates Tomahawk 'Flow Plus' Design For:

Greater output, a more consistent feed rate and controlled delivery at low fan speeds.


Tomahawk 9500
Sale Type
benefits and features

Teagle Tomahawk 9500 Heavy Duty Bed Chain
12mm heavy duty bed chain, resulting in less tensioning adjustments. The chain does not have anything welded to it, which would lower its strength.

Teagle Tomahawk 9500 Twin crossbeaters
For a high and consistent discharge rate, ideally suited for feeding clamp materials, chopped bale silage and spreading straw.

Teagle Tomahawk 9500 Wireless Control
Slimline control panel uses Bluetooth® wireless technology for straight-forward communication between the operator and the Telehawk.

Teagle Tomahawk 9500Visual Feedback
An indicator confirms the movement of the bed chain. The hydraulic motor driving the bed chain is not vulnerable to damage.

Teagle Tomahawk 9500Swivel Chute
For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.

High Performance ValveTeagle Tomahawk 9500

Hydraulic valve can take up to 60 litres/minute, resulting in less heating of the oil, faster response to the controls and more power being delivered to the Tomahawk.

Superior performanceTeagle Tomahawk 9500

Wide body format delivers greater capacity, increased throughput and delivery distance from the large diameter fan. Hardox housing as standard.

Slip and overrun on PTOTeagle Tomahawk 9500

For driveline protection a slip clutch is fitted as standard on the PTO shaft.


product specifications
  9500 9500SC
Chute Side Swivel
Dual Chop
No No
Straw Spread Spread
No. of crossbeaters 2 2
Capacity (m³) 276 276
Capacity (bushels) 227 227
No. of 5' round bales 3 - Straw Only (or 2x 6' round bales) 3 - Straw Only (or 2x 6' round bales)
No. of 8' rectangular bales (4'x3' / 4'x4') 2 / 1 2 / 1
Bale chamber (tailgate down) W x H x D 5'7" x 5'2" x 13'1" 5'7" x 5'2" x 13'1"
Blow distance (max.) 82' 72'
Min. tractor PTO 80HP 80HP
Overall width (chute closed) 8'2" 7'3"
Overall length (tailgate up) 17' 17'
Overall length (tailgate down) 20'9" 20'9"
Overall height (chute closed) 9'6" 9'6"
Unladen Weight   6,790 lb   6,967 lb
Tyre size 305/55R 22 (options available) 305/55R 22 (options available)
Feed Baled Silage No No
Feed Clamp Silage Yes Yes
Bed Cubicles / Straw Processing No No
Bed Loose Housing Yes Yes
additional options

Hydraulic Filter Teagle Tomahawk 9500
In-line high pressure filter stops contamination from damaging the valve equipment.

Teagle Tomahawk 9500 Tailgate Extension
Increase capacity and ease of loading, attaches easily to a standard tailgate.

Teagle Tomahawk 9500 Swivel Chute Extension
Swivel chute extension to increase discharge height.

Teagle Tomahawk 9500 Weigh Cells
Weigh cells, available in standard or programmable versions. Track your input costs or weigh feed materials to control diets. Improve feed/bedding cost efficiency and stock management.

Teagle Tomahawk 9500 Side Discharge Chute
Deliver only to the right hand side, with slightly greater blow distance than the swivel chute. Discharge height is lower for easier access to low buildings. Chutes can be raised or lowered as required.

Teagle Tomahawk 9500 Wide Angle PTO
For continuous operation when turning corners a Wide Angle Walterscheid PTO shaft is also available.
